You should also note that beam structures are only transferred in RSTAB surface elements are deleted. The following video shows you some helpful modeling tools that you can use to efficiently modify your model in RFEM and RSTAB. RFEM - FEM-Statiksoftware Webinar: Einführung in die Programme RSTAB 8 und RFEM 5 19,179 views 52 Dislike Share Save Dlubal Software DE 3. Also in this case, all module entries and printout reports are deleted.
However, it should be noted that the printout reports or input data already created in add-on modules cannot be transferred.Īn RFEM file can be imported in RSTAB by renaming the file extension *. After opening the RSTAB file, you can save the model as an RFEM file for further editing. In this way, you can display not only the RFEM files, but also all RSTAB files stored in the selected directory (see the image). In order to open an RSTAB file in RFEM, you have to change the file type in the "Open" dialog box either to "File type RSTAB" or to "All Files".

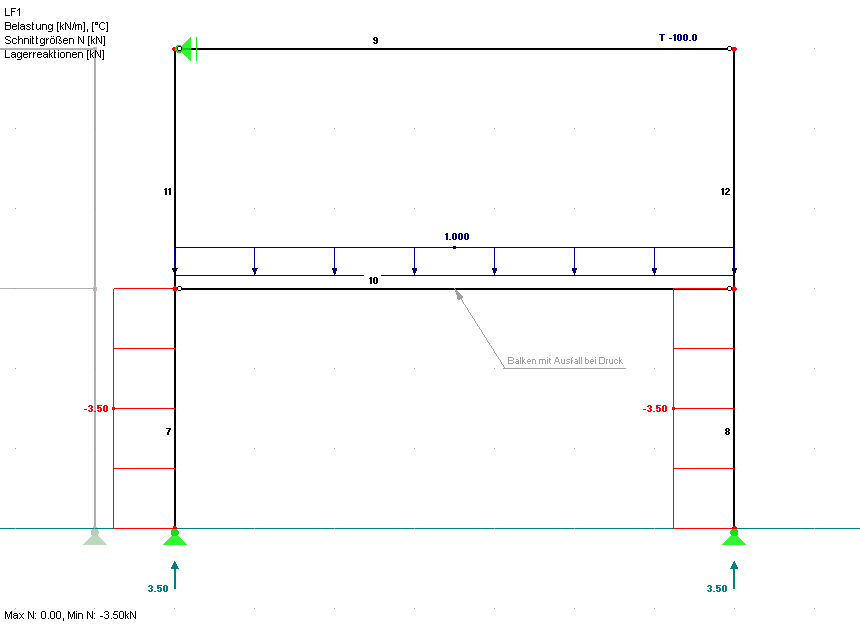

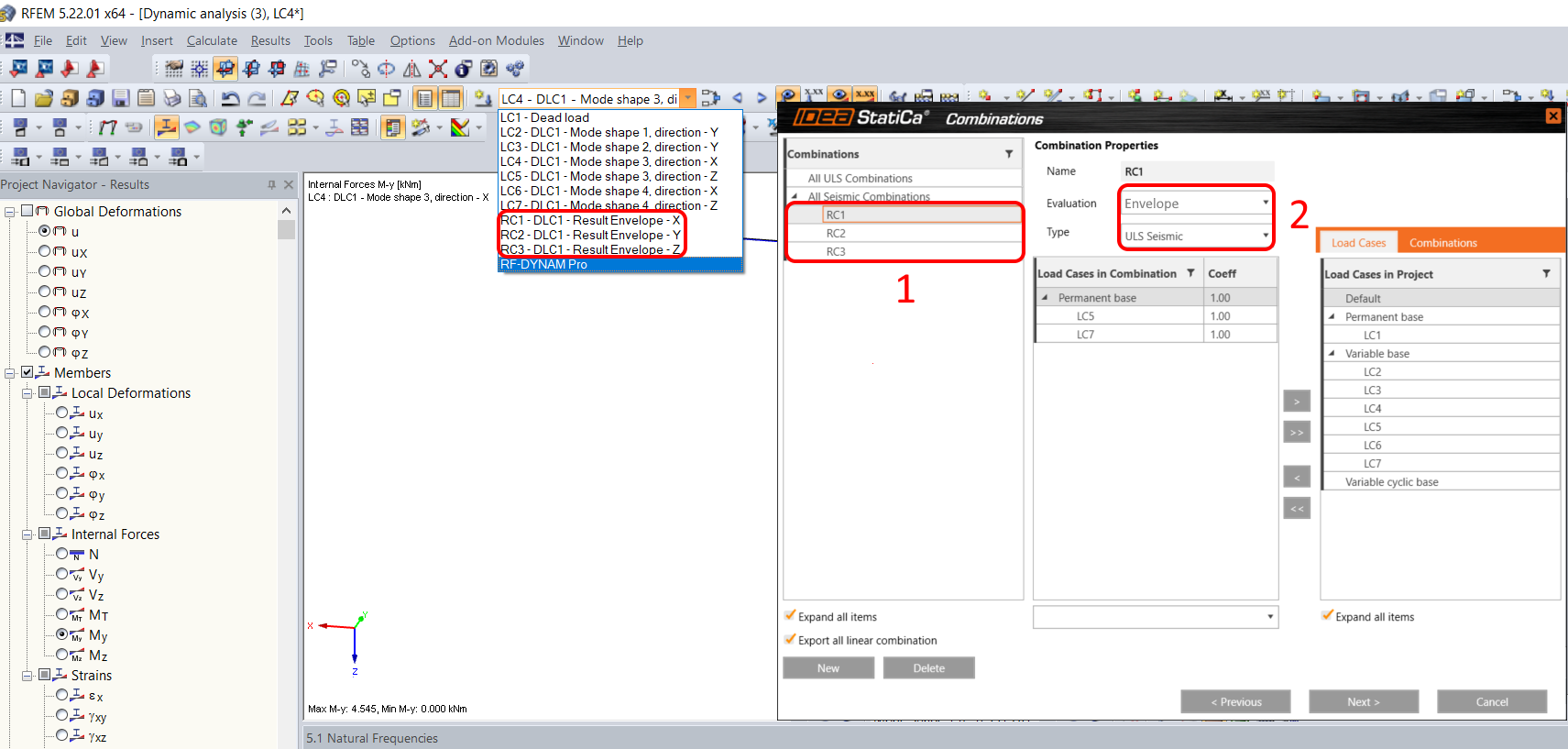

All dynamic load cases and load combinations have to be selected in the list and assigned to the Variable base group and the type has to be switched to Seismic Exclusive. First, open the source file RFEM.
This may be necessary, for example, if it is determined during the model input that it makes sense to include surface elements such as wall panes in the existing RSTAB model. When you select and import a structural detail from RFEM/RSTAB to IDEA StatiCa, in the Code-check manager click the Definition of loads. Structural analysis software RFEM / RSTAB and LIMITS add-on module for load-bearing capacity analysis of structural elements acc. Note: RFEM/RSTAB BIM link provides importing only under the Eurocode (EN) standard. In RFEM, it is possible to open and further edit structures with loads and load cases that have been modeled in RSTAB.
